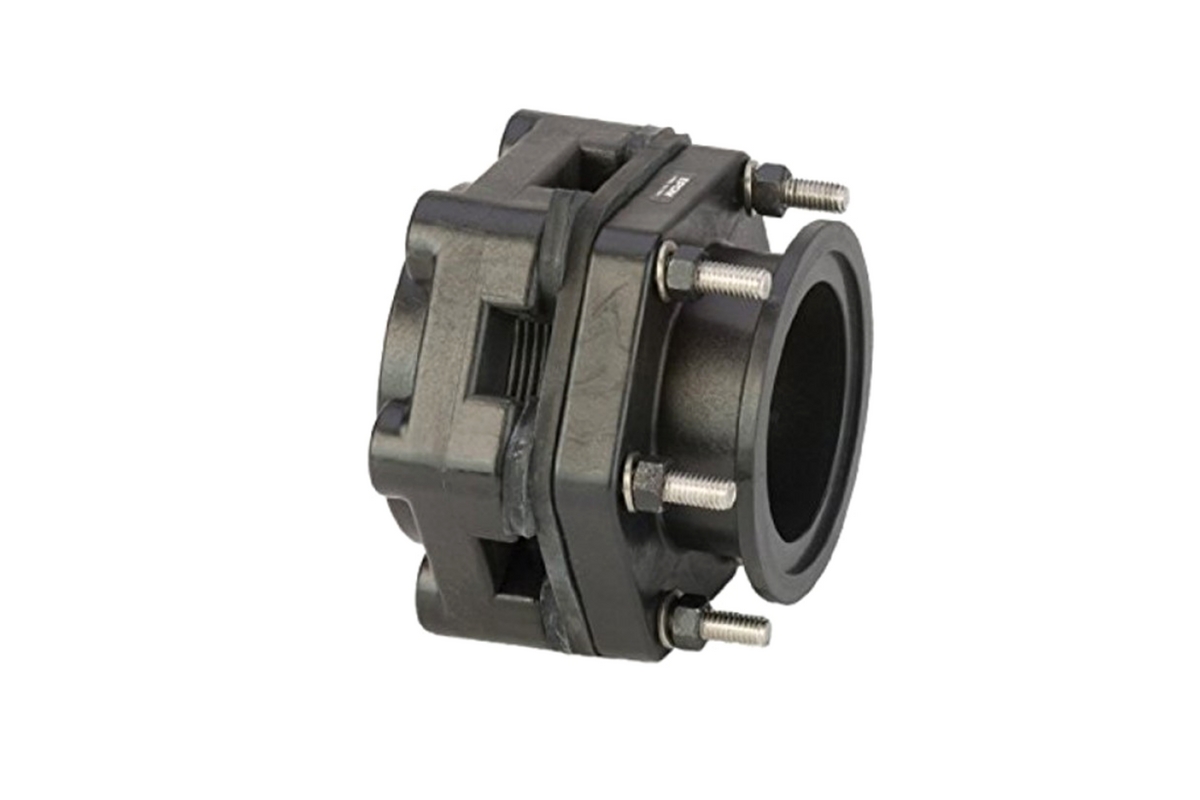

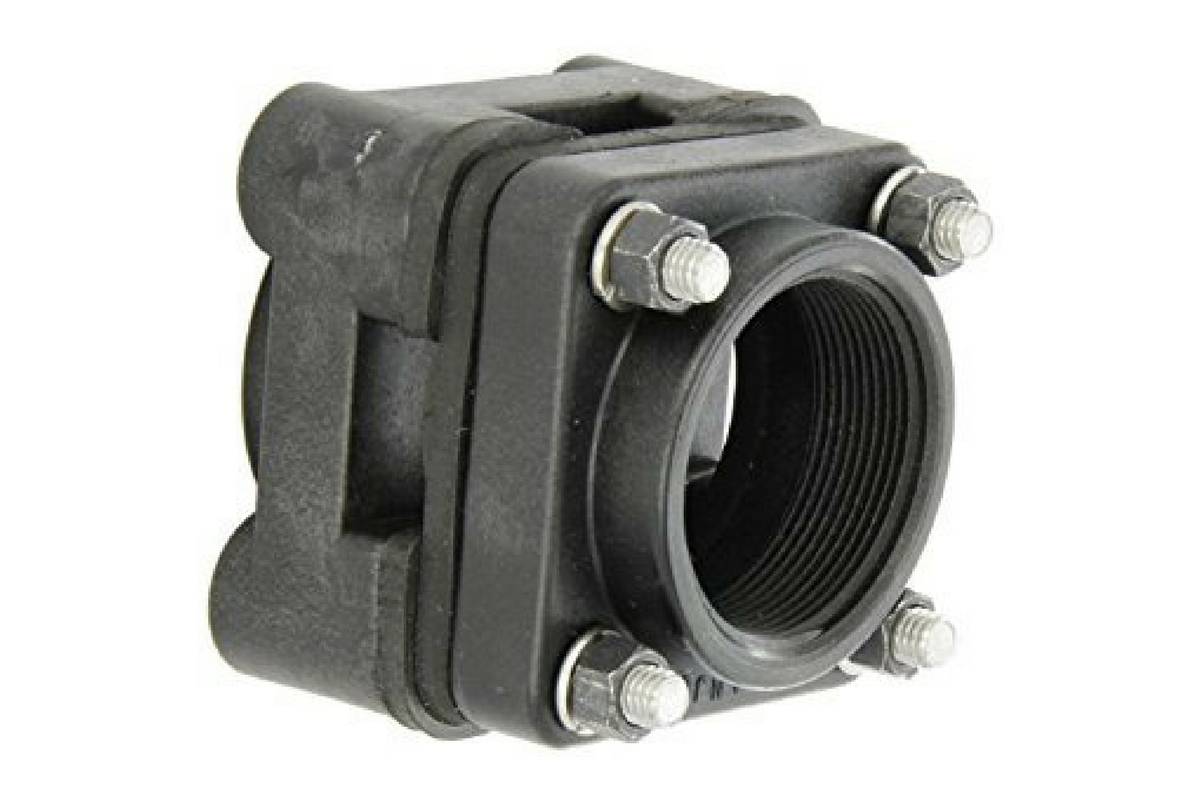

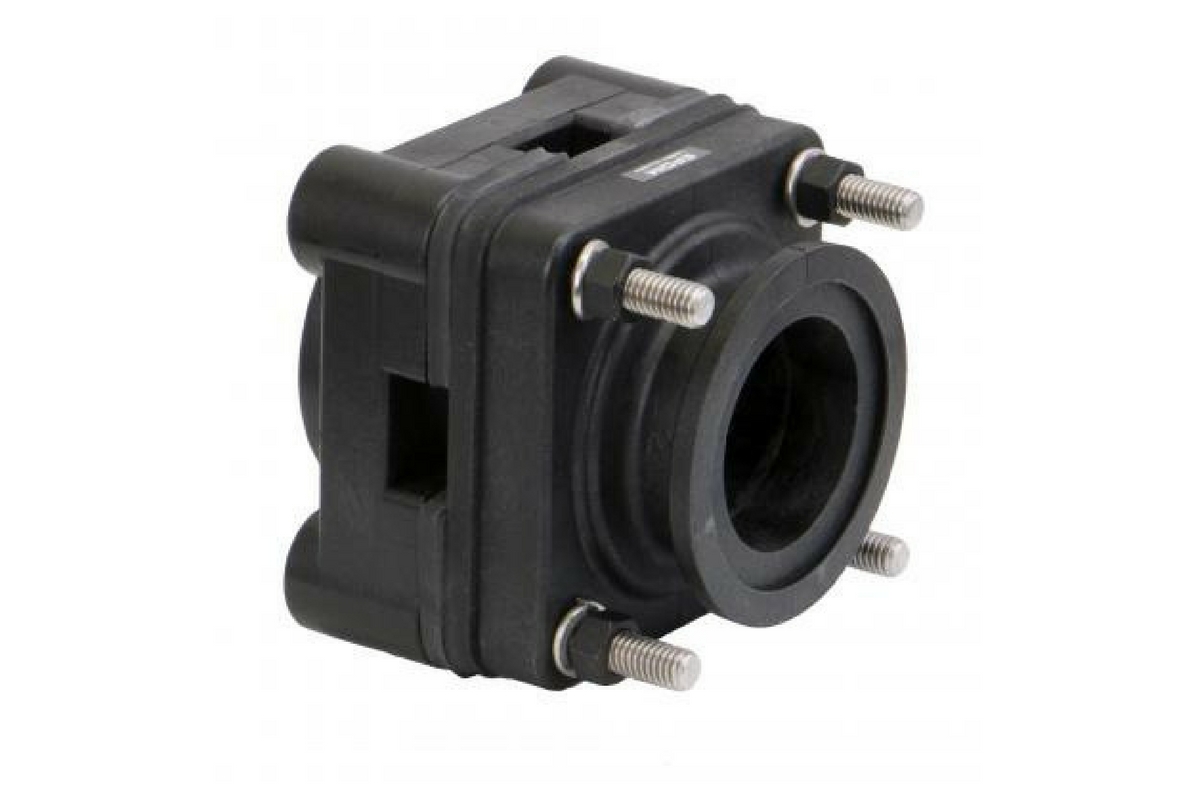

Banjo Tank Fittings - Bottom Drain

Banjo manifold bolted bottom drain tank flanges allowing tanks to be fully drainable.

LIVE LOCAL THINK LOCAL

As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

Stainless steel bolts
Bolt head plugs sealed ultrasonically
Glass reinforced polypropylene
EPDM gaskets standard
FKM (viton) available

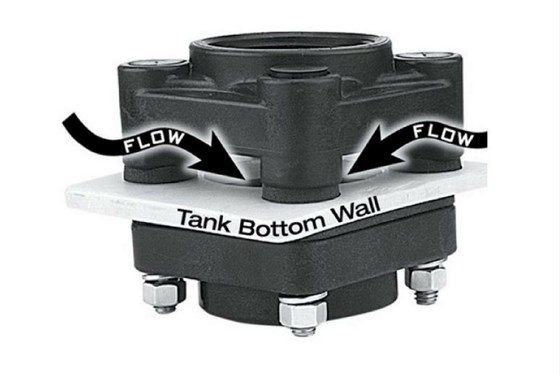

Fully drainable

To Order:

Part No.	Description	PSI
MBF100BD	1" flange x 1" EPDM female thread	150
MBF100BDV	1" flange x 1" FKM (viton) female thread	150
MBF150200BD	2" flange x 1 1/2" EPDM female thread	150
MBF200BD	2" flange x 2" EPDM female thread	150
MBF220BD	2" full port flange x 2" EPDM female thread	150
MBF300BD	3" flange x 3" EPDM female thread	150
MBF300BDV	3" flange x 3" FKM (viton) female thread	150
