Bertolini High Pressure Diaphragm Pumps

Bertolini 50 bar rated high pressure diaphragm pumps

LIVE LOCAL THINK LOCAL

As locally owned and operated businesses, our strong network of franchisees are part of their local community and understand the needs of their local customers.

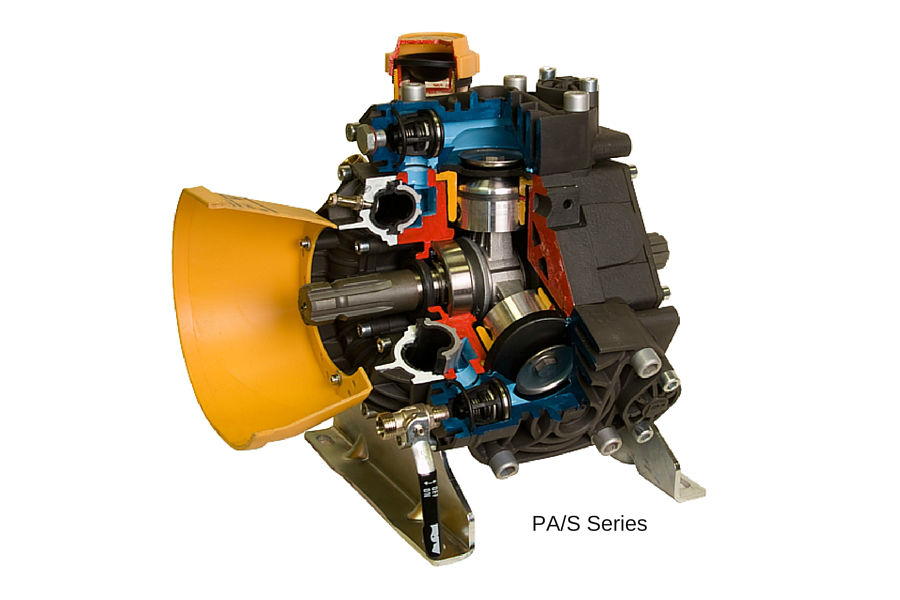

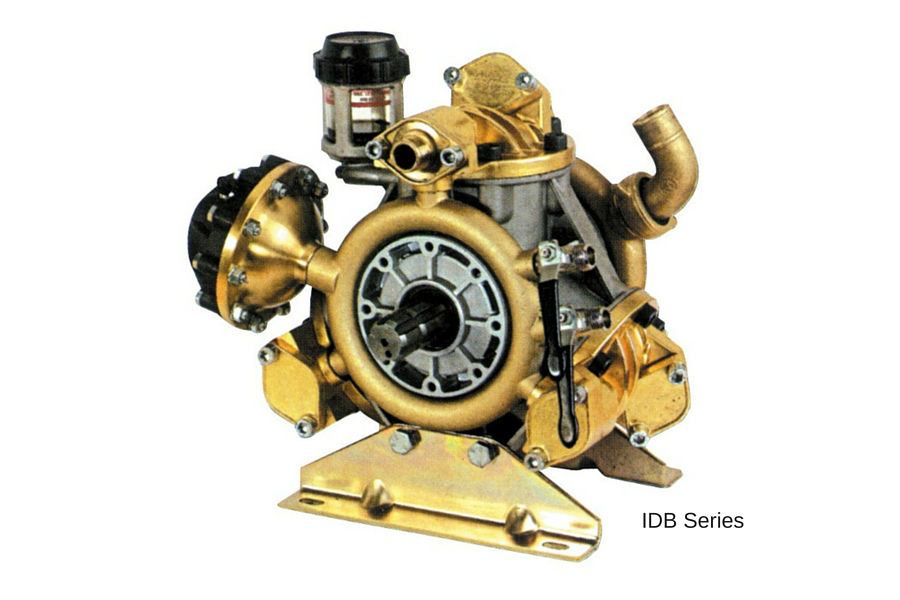

Bertolini 50-bar rated pumps are suitable for airblast sprayers and large high pressure boom sprayers. PA/S series feature annodised aluminium construction while the IDB series features brass heads and manifolds.

Part No.	Pump Model	Flow (L/Min)	Pressure (Bar)	Suction Input	Pressure Output	Power (hp)	Shaft Code

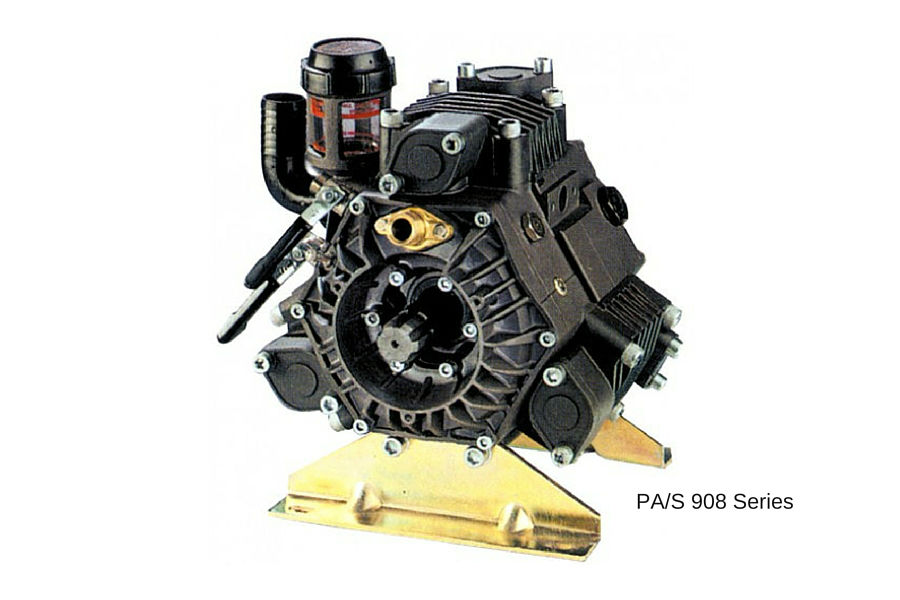

37.5000.97.3	PA/S 908	90	50	1 1/4" HB	3/4" BSP	11.2	VD
37.5050.97.3	PA/S 1108	110	50	1 1/2" HB	3/4" BSP	13.9	VD
41.7100.97.3	PA/S 154	150	50	1 1/2" HB	3/4" BSP	19.0	VD
49.6010.97	IDB1600	162	50	2" HB	3/4" BSP	20.2	VD
49.6020.97	IDB1800	182	50	2" HB	3/4" BSP	22.8	VD
49.6030.97	IDB2000	192	50	2" HB	3/4" BSP	24.1	VD

VC = Pump complete with thru shaft, Front: 1 3/8" male six spline; Rear: 1 3/8" male six spline
