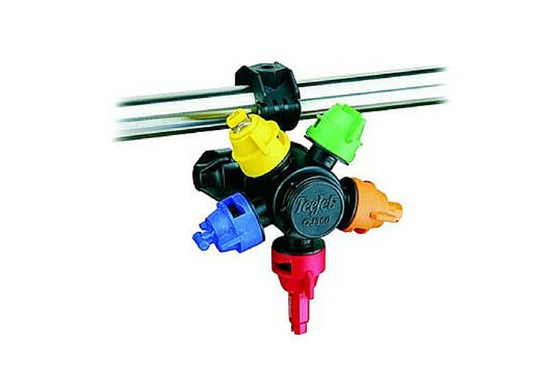

QJ306C Nozzle Body Series for Wet Booms

Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing
Positive shutoff between each position
Automatic spray alignment using flat fan spray tips
Maximum operating pressure of 300 psi (20 bar)
Available in 20mm, 25mm, 1/2", 3/4" or 1" pipe connections
Includes ChemSaver diaphragm check valve for drip free shutoff. Stand diaphragm opens at 10 PSI (0.7 bar)
Standard EPDM diaphragm with Viton available as an option
Also available with optional 56720 Air ChemSaver or 55280 e-ChemSaver shutoff valves
Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop
Mount to a 3/8" (9.5mm) hole drilled in pipe or tubing
Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt
Hinged upper clamp reduces assembly time and fits inside common boom channels

QJ360E Nozzle Body Series for Wet Booms

Available to fit 20mm OD tubing only
Flow Rate: 1.5 GPM (5.7 l/min) at 5 PSI (0.34 bar) pressure drop, 2.1 GPM (8.0 l/min) with 10 PSI (0.69 bar) pressure drop
Reduced internal cavity to increase ChemSaver shut off speed
Notched inlet tube allows for more complete boom drainage and reduces sediment buildup

Part Number	No. of Outlets	to Clamp On

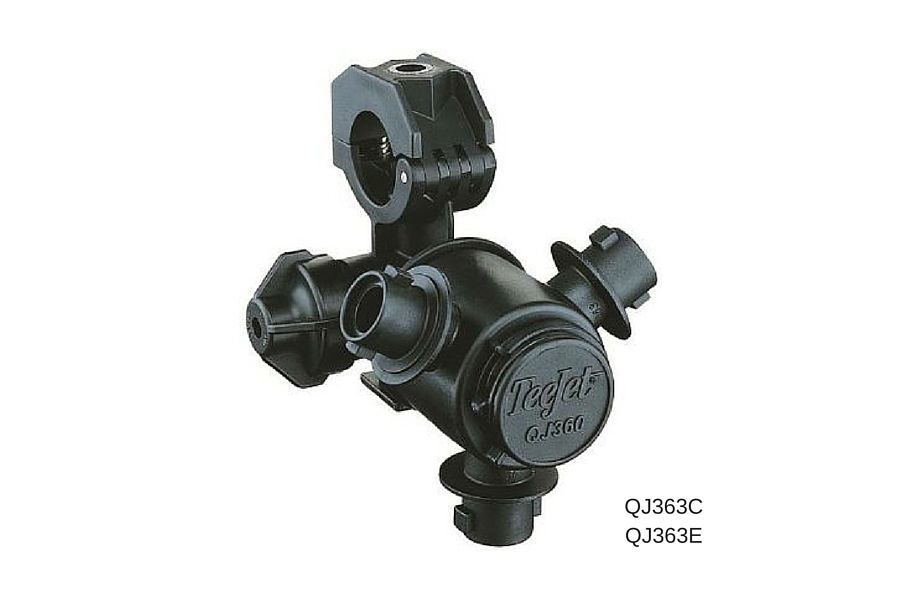

QJ363E-20MM-NYB	3	20mm Tubing
QJ363C-25MM-NYB	3	25mm Tubing
QJ363C-1/2-NYB	3	1/2" Pipe
QJ363C-3/4-NYB	3	3/4" Pipe
QJ363C-1-NYB	3	1" Pipe

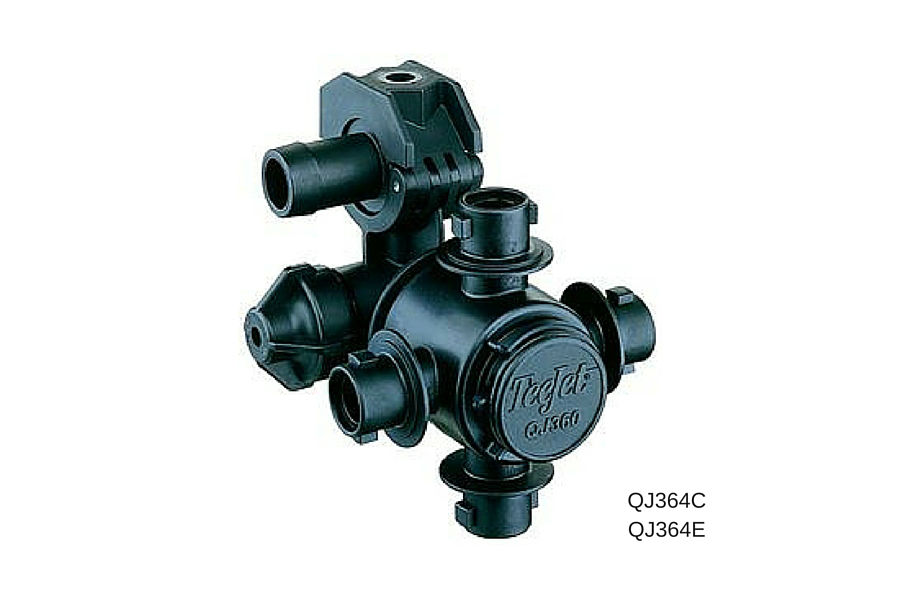

QJ364E-20MM-NYB	4	20mm Tubing
QJ364C-25MM-NYB	4	25mm Tubing
QJ364C-1/2-NYB	4	1/2" Pipe
QJ364C-3/4-NYB	4	3/4" Pipe
QJ364C-1-NYB	4	1" Pipe

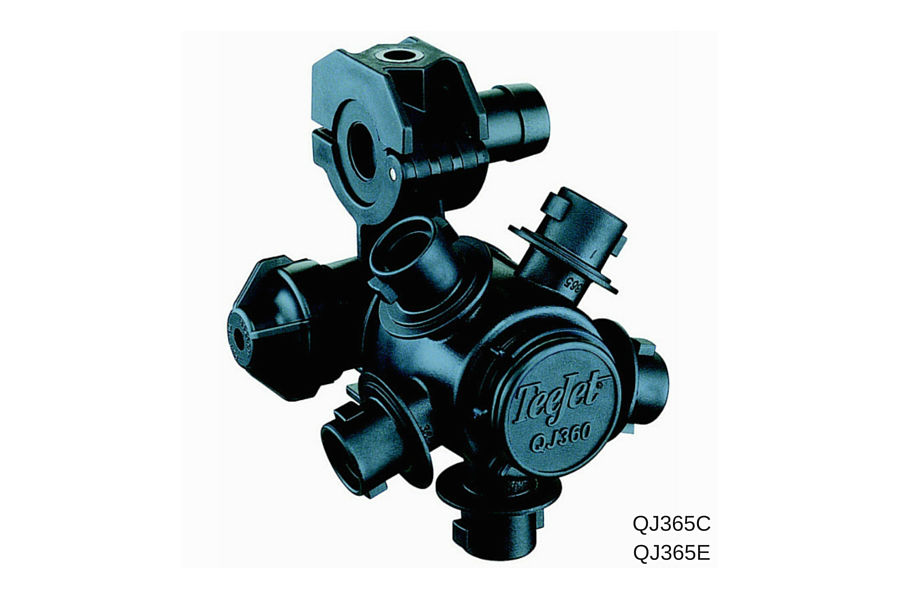

QJ365C-20MM-NYB	5	20mm Tubing
QJ365C-25MM-NYB	5	25mm Tubing
QJ365C-1/2-NYB	5	1/2" Pipe
QJ365C-3/4-NYB	5	3/4" Pipe
QJ365C-1-NYB	5	1" Pipe
